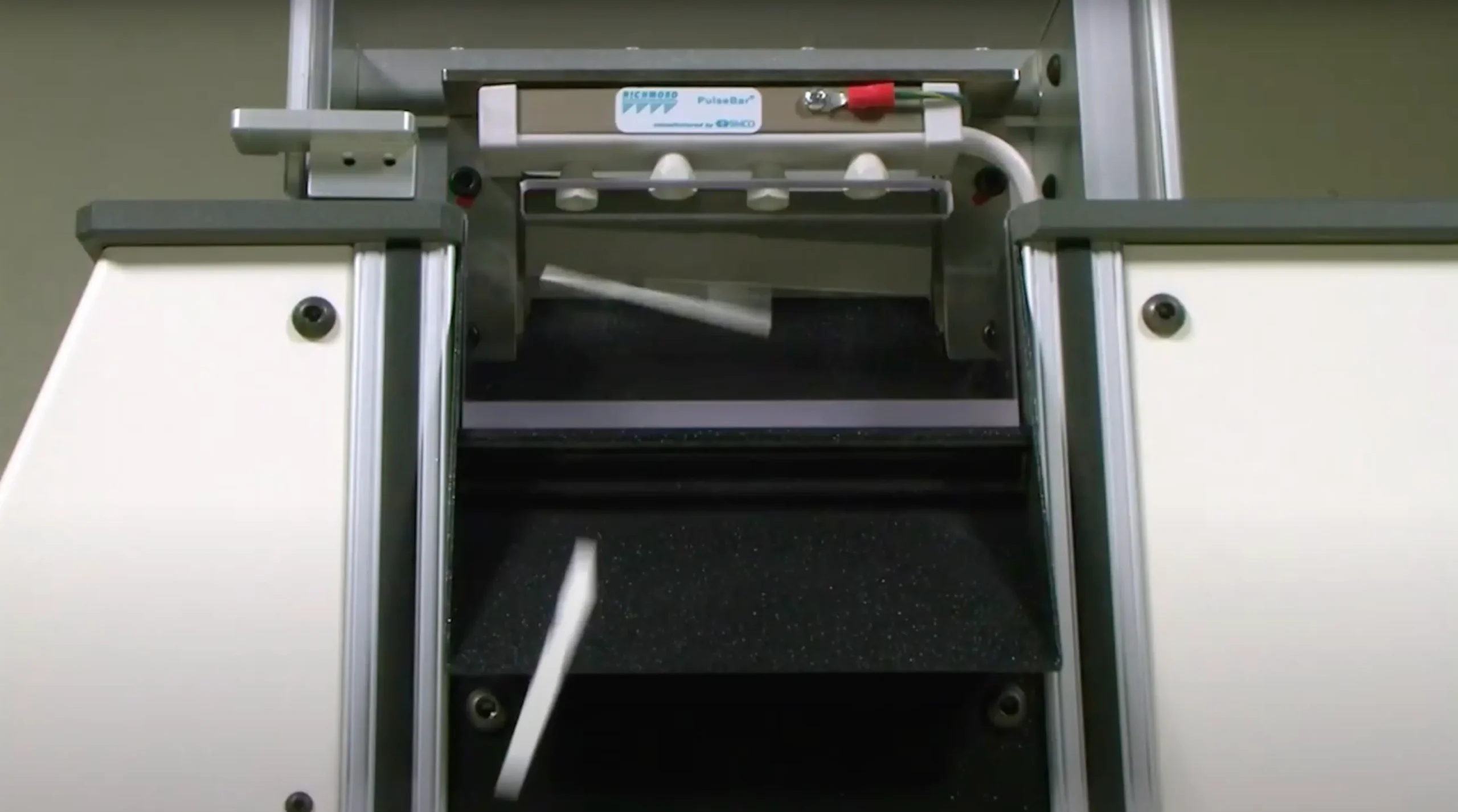

Kinematic Matrix 2360 Programmable Shear
The Matrix 2360 Programmable Shear Offers a flexible means of cutting a wide variety of diagnostic test strip products. The easily adjustable infeed guide allows the feeding of narrow or wide web or cardstock while the Touchscreen operator interface provides for quick changes of strip width.
Speak with an ExpertOverview
The Matrix 2360 Programmable Shear Offers a flexible means of cutting a wide variety of diagnostic test strip products. The easily adjustable infeed guide allows the feeding of narrow or wide web or cardstock while the Touchscreen operator interface provides for quick changes of strip width. The touchscreen operator interface continuously shows current strip width, quantity and calibration selections as well as warning and instructional screens for maximum flexibility and performance. Kinematic Automation’s unique blade design allows for extremely long blade life while cutting even the most demanding materials.
The programming flexibility coupled with a cutting speed of 360 strips per minute provides utility unsurpassed in the industry. This system can be used for the lower volumes of product development as well as much higher quantity production scenarios.
Matrix 2360 Programmable Shear Diagram
Kinematic Matrix 2360 Programmable Shear
The Matrix 2360 Programmable Shear offers a flexible way to cut a wide variety of diagnostic test strip products. The easily adjustable infeed guide allows the feeding of narrow, wide web, or cardstock products while the touchscreen operator interface enables quick changes between strip widths. The touchscreen operator interface continuously shows current strip width, quantity and calibration selections as well as warning and instructional screens for maximum flexibility and performance. Our unique blade design allows for extremely long blade life while cutting even the most challenging materials.
Speak with an ExpertMatrix 2360 Programmable Shear Diagram
Specifications
The Matrix 2360 vs. others:
- 6 strips / sec = 360/min.
- Requires infrequent sharpening
- Captive blade design for high reliability, low maintenance
- Integral touch screen Operator interface with help screens
- Blade removed for maintenance using just three screws, and requires no alignment.
Key Features
- All electric drive for quiet, vibration-free operation
- English or metric programming
- Quick change blade design
- Anti-static bar helps reduce electrostatic problems
- Easily change card width without the use of tools
- Cuts from continuous web or individual cards
- Simple calibration
- Long life blade design
- Touchscreen control
