Overview

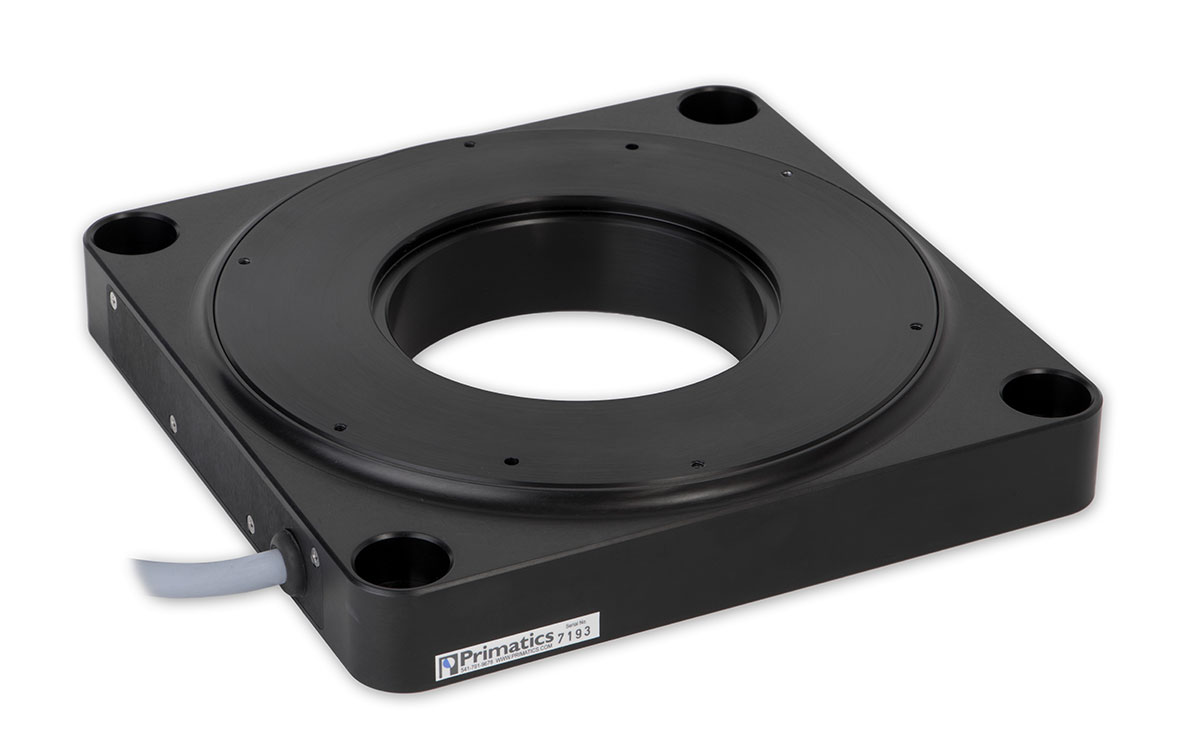

The Primatics PLR110 rotary positioning stage offers a large aperture in a low profile package—the direct drive system creates arcsecond accuracy and fast settling times, making the PLR110 ideal for fine position correction in assembly and optical applications where worm drives can’t provide the necessary accuracy, throughput, or life.
Details
VERSATILE APPLICATION
The low profile of the PLR110 supports its use in tight spaces—the open throat design allows cables to be routed through its center to tooling mounted above the stage.
All PLR110 performance specifications are verified, and a full set of accuracy and repeatability plots are included with each stage. Additionally, each unit undergoes extensive burn-in and testing. These steps ensure that the stage will deliver optimal performance over a long period of time.
Features
- +/-60 degree travel
- Resolution up to 0.43 arcseconds
- Accurate to within +/-30 arcseconds
- 2 kilogram axial load
